xNazwa produktu | Klimator światłowodowy | Długość fali | 1260-1620 nm |
---|---|---|---|
Rodzaj włókna | PM1550 Panda Włókno | Odległość robocza | 5/10/20/50/60 mm |
Rozmiar wiązki | ≤0,5 mm | ||
Podkreślić | PM1550 Fiber Collimator,1620nm Fiber Collimator,Optical Communication Fiber Collimator |

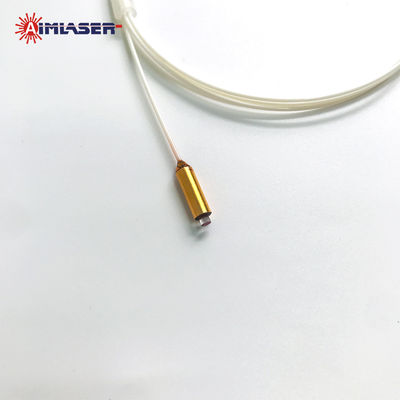

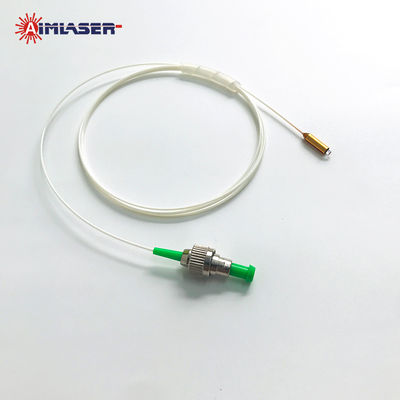

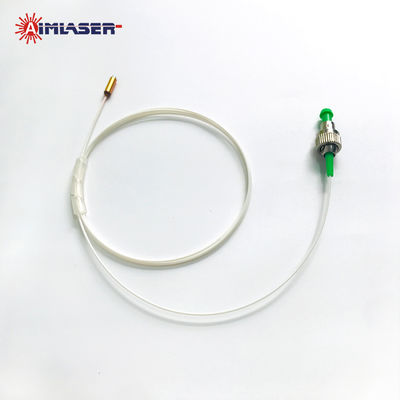

1260-1620nm O/C/L SM PM1550 1.8 mm(OD) Fiber Collimator with FC/APC for Optical Communication
Fiber Collimator
AIMLASER’s 1260–1620nm SM PM Fiber Collimator is designed for precise beam collimation in polarization-sensitive optical systems. Built with PM1550 Panda fiber and a compact 1.8mm OD lens package, it delivers low insertion loss, high extinction ratio, and tight beam alignment with an extremely small beam size of ≤0.5mm—ideal for O, C, and L-band fiber optic communication, including commonly used wavelengths such as 1310nm and 1550nm.
This fiber collimator supports customizable working distances from 5mm to 60mm and features an FC/APC connector for low back reflection, making it suitable for coherent and high-speed optical systems. With stable polarization performance, compact integration, and long operational life, it’s well-suited for applications in optical sensing, interferometry, and advanced photonics research.
Whether used in DWDM systems, optical coherence tomography, or interferometric sensors, this fiber collimator enables high-efficiency light transmission and excellent alignment precision—critical for today's high-speed, high-fidelity optical networks.
Features
-
Compact 1.8mm OD lens design for space-constrained systems
-
Extremely small beam size (≤0.5mm) for precise optical alignment
-
Low insertion loss (typ. 0.2dB), high extinction ratio (≥23dB)
-
Stable polarization-maintaining performance with PM1550 Panda fiber
-
Customizable working distances from 5mm to 60mm
-
FC/APC connector ensures low back reflection
-
Ideal for O/C/L band wavelengths, including 1310nm & 1550nm
Specifications
Items | Specifications |
Model Number | Single Mode Polarzation Maintaining Fiber Collimator |
Operating Wavelength | 1260-1620nm |
Working Distance | 5,10,20,50,60mm |
Beam Size | ≤0.5mm |
Typ Insertion Loss | 0.2dB |
Insertion Loss | ≤0.3dB |
Extinction Ratio | ≥23dB |
Return Loss | ≤500mW |
Fiber Type | PM1550 Panda Fiber |
Package Dimensions | 1.8mm(OD) Lens |
Fiber Length | 1m |
Numerical Aperture | 0.22 N.A. |
Connector | FC/APC |
Life Span | ≥8,000Hrs |
Applications
-
Coherent fiber optic communication systems
-
Polarization-sensitive optical sensing
-
Fiber-based interferometry and metrology
-
Quantum optics and photonics research
-
Laboratory optical alignment and testing setups
